Trusted Computing Base - Mindmap
A Trusted Computing Base (TCB) is the totality of the protection mechanisms within a system or architecture that work together to enforce a security policy.
Definition Simplified
Totality: ALL
Protection Mechanisms:
- Hardware (TPM)
- Firmware (Code signing)
- Software (Anti-virus)
Figure: Mindmap for TCB
A Trusted Computing Base comprises all of the protection mechanisms:
- People
- Processes
- Technology
Reference Monitor Concept (RMC)
A reference monitor is an access control concept of an abstract machine that mediates all accesses to objects by subjects.
Definition 20–3. [50]
- If we want to control security we have to control what subjects are allowed to control objects, and what specifically can do with objects.
- The elements in RMC
- A subject is an active entity
- A mediation is required to control subject’s access to an object; it makes decisions based on rules
- Every control also has to have an assurance aspect (we need to know if the mediation is working correctly); Logging & Monitoring
- An object is a passive entity (it is been accessed by the subject)

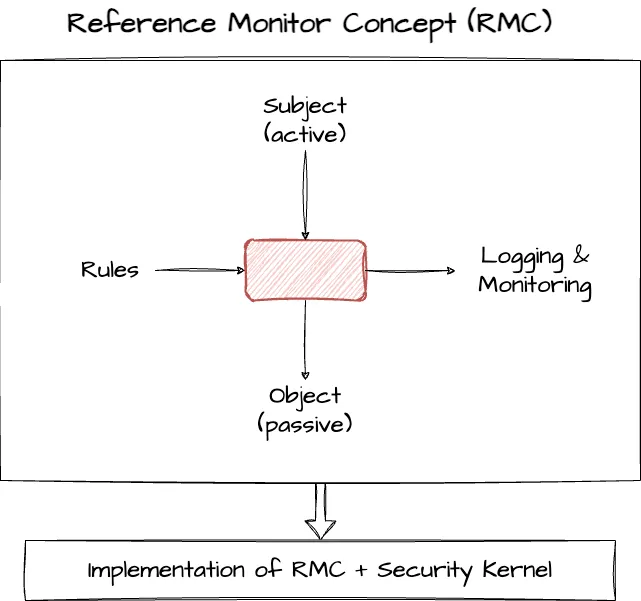

Figure: Reference Monitor Concept
Reference Monitor Principles
- Tamper Proof
- Isolation: protected from unauthorized alteration
- Resists subversion and malicious software
- Always invoked (non by-passable)
- Completeness: every access is mediated
- Small and simple enough to allow assurance of its correctness
- Verifiability: verified to perform its functions properly
- Ability to implement policy with high assurance
Defines what it means for a system to be “secure”. Most system vulnerabilities can be traced to violations of one or more of the RM principles
Security Kernel
A security kernel is a combination of hardware & software that implements a reference monitor.
- Constantly monitors and controls access to critical system components.
- Ensures that only authorized processes and users can interact with sensitive data and functionality.
- Enforces a set of predefined security policies to create a robust barrier against potential threats.
- A compact and well-defined structure that allows for thorough testing and verification.
Resources
- Chapter 20 Building Systems with Assurance, Computer Security Art and Science, 2nd Edition
- Destination Certification - Trusted Computing Base MindMap (3 of 9) | CISSP Domain 3
